Tube Range |
Special grade tubes like, SAE 1541, SAE 1010, SAE 1020, SAE 1030, Medium Carbon Tubes and High tensile strength tubes for special applications are also available as per customers requirements in ERW / ERW Annealed / CEW / CEW Annealed conditions. |
| |
 |

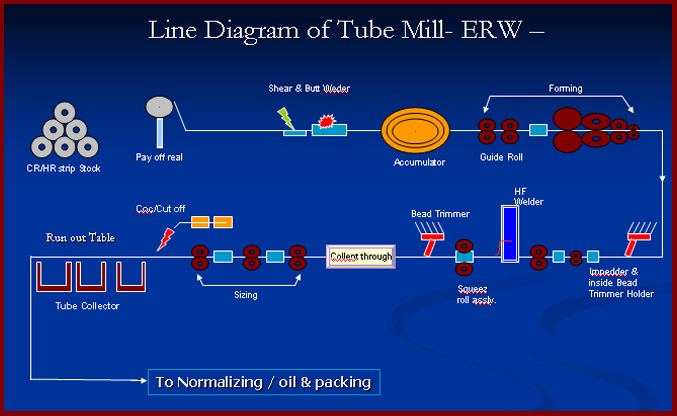

Line Diagram of Tube Mill- ERW |
| |
ERW Tubes |
| |
| TECHNICAL DATA SHEET FOR PRECISION ERW TUBES |
| |
| Diameter (mm) |
12.70 to 114.00 mm. |
| Thickness (mm) |
0.40 to 6.00 |
| Length |
upto 12 Mtrs. |
|
| |
| |

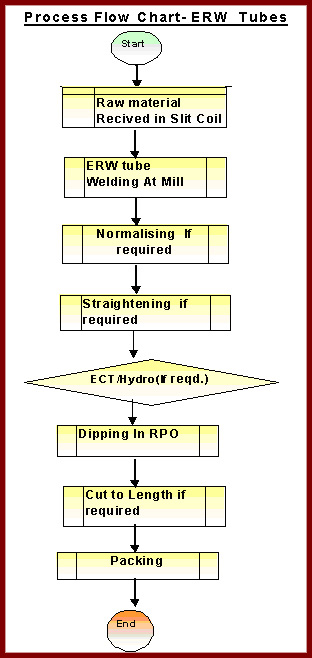

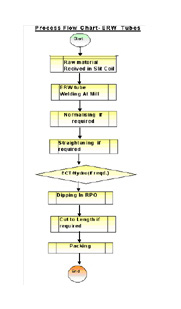

Process Flow Chart - ERW Tubes |
 |
|
Applications
Automotive, Boiler & Heat Exchanger, Air Heater, Gen. Engg., Bicycle & Propeller Shafts |
| |
|
CEW Tubes |
| |
| TECHNICAL DATA SHEET FOR PRECISION CEW TUBES |
| |
| Outer Diameter (mm) |
09.00 to 110.00 |
| Thickness (mm) |
0.80 to 6.00 |
| Length |
upto 12 Mtrs. |
|
| |

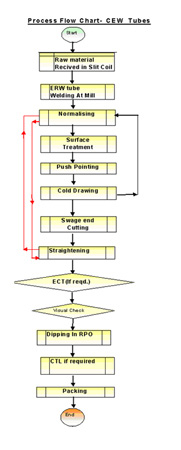

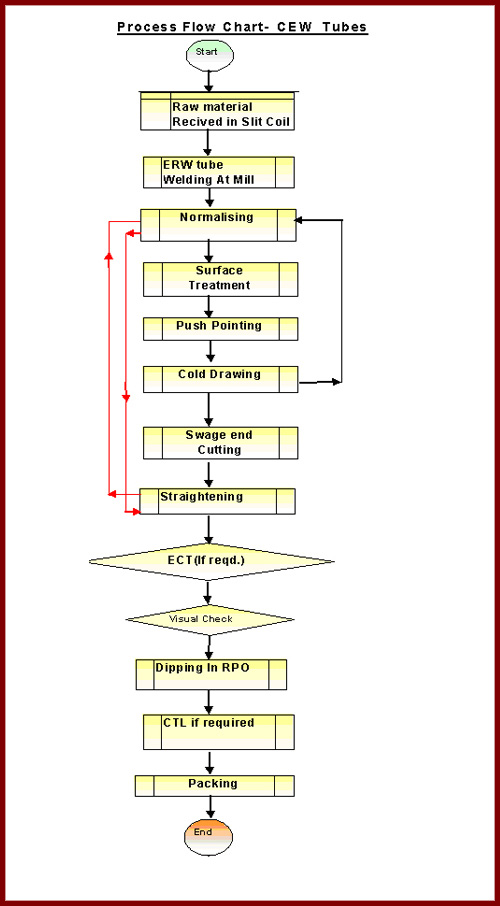

Process Flow Chart -CEW Tubes |
 |
Applications
Automotive, Boller, Shock Absorbers, Textiles, General Engg. Propeller Shafts, Cylinder bore ttubes for special applications & front fork tube for two wheelers, |
| |
