Regular Duty Steel Strapping

Ribbon wound

Mill wound

High Tensile Steel Strapping

Regular Duty Steel Strapping
Grade A:
1. It is made of low carbon, low manganese cold rolled steel,
2. It is designed for low duty packaging applications

Grade B:
1. It is made of medium carbon, high-manganese cold rolled steel.
2. It is designed for high-duty applications.
3. Its high yield strength allows it to elongate further without breaking and absorbs shocks during transit and handling
4. It has more feet per pound and less variation in coil size, reducing coil changeovers.
5. It is the preferred strapping for power strapping machines, power strap feeders and other applications requiring straight strapping.

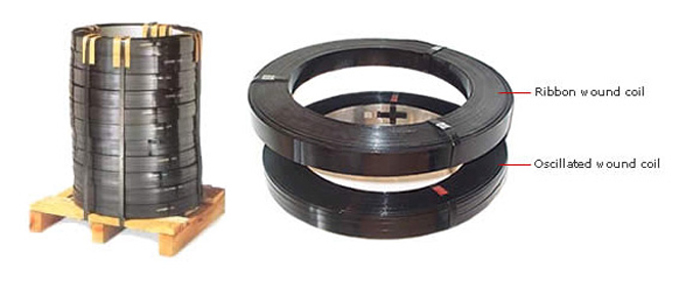

Ribbon wound

Each layer of strap is wound directly one above the other so that the width of the strapping is the width of the coil.

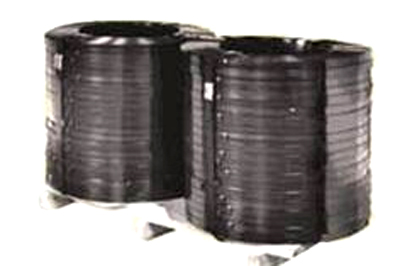

We can supply 250/500 Kg. Jumbo Coils for automatic machines as per customer requirement

Chemical Composition for Regular Duty(Grade A & B) Steel Strap::

Chemical	Grade A	Grade B
C	0.05-0.15%	0.45% max
Mg	0.30-0.60%	1.60% max
P	0.05% max	0.04% max
S	0.05% max	0.05% max
Al	0.05% max	0.05% Max
Si	0.30% max	0.35% Max

Mechanical Properties:

	Grade A	Grade B
Tensile strength	70-85 Kg/mm	90-120 Kgs/mm2
Elongation	0-3% over 150mm	6.5%
Bends	2	2
Curl	12.7mm Max on 2.40 meter	12.7mm Max on 2.40 meter
Twist	30 de max on 2.40mts	30 de max on 2.40mts

Coil Specification:


Ribbon wound for sizes	31.75mm & 19.05 mm width
Mill wound for sizes	19.05mm , 15.88mm, 12.70mm width
Coil Weight	45 to 55 Kgs
I.D	400 / 406 mm
O.D	550 to 670 mm
Jumbo Coils	225Kgs in Wt.
Grade A Jumbo Coils	450 Kgs in Wt

Strap size				Average Strength		Yield		Coil	Coil	Strap
Width		Thickness		Average Strength		Yield		Winding	Weight	Finish
Inch	mm	Inch	mm	lbs	N	ft/lb	Mkg
3/8	9.5	.017"	0.43	975	4340	46.1	31	Mill	105	Painted & Waxed
1/2	12.7	.017"	0.43	1275	5670	34.6	23.3	Mill	105	Painted & Waxed
		.020"	0.51	1475	6560	29.4	19.8	Mill	105	Painted & Waxed
		.020"	0.51	1475	6560	29.4	19.8	Mill	105	Painted & Waxed
5/8	15.9	.017"	0.43	1625	7230	27.7	18.6	Mill	105	Painted & Waxed
.020"	0.51	1825	8120	23.6	15.9	Mill	105	Painted & Waxed	105	Painted & Waxed
3/4	19	.017"	0.43	1900	8450	23.1	15.5	Mill	105	Painted & Waxed
3/4	19	.020"	0.51	2150	9560	19.6	13.2	Mill	105	Painted & Waxed

Standard strap finish/Steel
Sizes from: 3/8" x 0.017" to 2" x 0.004"(9.5x0.43 mm to 50.8 x 1.12mm)

Strap type	Strap Size		Approximate Weight/Coil
Strap type	Inch	mm	lbs	Kg
Grade A	1/2 x 0.017	12.7 x 0.43	9	4
Grade A	5/8 x 0.017	15.9 x 0.43	11	5
Grade A	3/4 x 0.017	19.0 x 0.43	13	5.9
Grade A Anchor	3/4 x 0.017	19.0 x 0.43	13	5.9
Grade B	1/2 x 0.020	12.7 x 0.51	10.2	4.6
Grade B	5/8 x 0.020	15.9 x 0.51	13.6	6.2
Grade B	3/4 x 0.025	19.0 x 0.64	20.1	9.1
Grade B	3/4 x 0.031	19.0 x 0.79	24.7	11.2

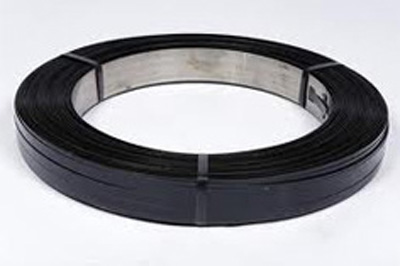

Mill wound

he strapping is oscillated uniformly and tightly across the 2-1/2" (63.5 mm) width of the coil.

We produce 250/500 kg. Jumbo Coils for automatic machines as per customer requirement

Chemical Composition for Grade A & Grade B Steel Strap:

Chemical	Grade A	Grade B
C	0.08-0.12%	0.25-0.35%
Mg	0.30-0.45%	1.20-1.60%
P	0.020% max	0.02% max
S	0.02% max	0.02% max
Al	0.05% max	0.05% Max
Si	0.10% max	0.25% Max

Strap size				Average Strength		Yield		Coil	Coil	Strap
Width		Thickness		Average Strength		Yield		Winding	Weight	Finish
Inch	mm	Inch	mm	lbs	N	ft/lb	Mkg
1/2	12.7	0.02	0.51	1525	6780	29.4	19.8	Mill	105	Painted & Waxed
		0.02	0.51	1525	6780	29.4	19.8	Mill	105	Zinc
		0.023	0.58	1750	7780	25.6	17.2	Mill	105	Painted & Waxed
5/8	15.9	.020*	0.51	1900	8450	23.6	15.9	Mill	105	Painted & Waxed
		.020*	0.51	1900	8450	23.6	15.9	Mill	105	Zinc
		0.023*	0.58	2175	9670	20.5	13.8	Mill	105	Painted & Waxed
		0.023*	0.58	2175	9670	20.5	13.8	Mill	105	Zinc
3/4	19	0.02	0.51	2250	10010	19.6	13.2	Mill	105	Painted & Waxed
		0.023	0.58	2600	11560	17.1	11.5	Mill	105	Painted & Waxed
		.025*	0.64	2800	12450	15.7	10.5	Mill	105	Painted & Waxed
		.025*	0.64	2800	12450	15.7	10.5	Ribbon	75	Painted & Waxed
		.025*	0.64	2800	12450	15.7	10.5	Mill	105	Zinc
		0.031	0.79	3450	15350	12.7	8.5	Mill	105	Painted & Waxed
		0.031	0.79	3450	15350	12.7	8.5	Ribbon	75	Painted & Waxed
		0.031	0.79	3450	15350	12.7	8.5	Ribbon	105	Zinc
1-1/4	31.8	0.025	0.64	4650	20680	9.4	6.3	Ribbon	110	Painted & Waxed
		0.029	0.74	5400	24020	8.1	5.4	Ribbon	110	Painted & Waxed
		0.029	0.74	5400	24020	8.1	5.4	Ribbon	110	Zinc
		0.044	1.12	7900	35140	5.3	3.6	Ribbon	110	Painted & Waxed
2	50.8	0.044	1.12	12500	55600	3.3	2.2	Ribbon	120	Painted
2	50.8	0.044	1.12	12500	55600	3.3	2.2	Ribbon	120	Painted & Waxed

High Tensile Steel Strapping

HIGH TENSILE STEEL STRAPPING - FOR PACKAGING

The Cold Rolled High Tensile Steel strapping is specially heat treated to provide high strength and toughness for packaging application.
On this high speed and high precision online heat treatment line, the special strap paints are applied for strapping and cured by infrared wave curing system using quartz lamps.
For tension transmission high gloss wax is applied and cured by infrared wave curing system.
The allied products such as whole variety of metal steels and strapping tools are also available to our valued customers.

Strapping Specification:

Confirming to International Standards ASTM D-3953

GRADE	ULTIMATE TENSILE STRENGTH kg/mm2	BENDS	ELONGATION ON 152 mm GL	PAINT THICKNESS UM	WAX THICKNESS UM
	93 Min.	2	5 to 6.50%	1.75 to 5	0.40 to 0.50
	110 Min	1 R	2.50%	1.75 to 5	Nil
	130 Min.	1 R	2.50%	1.75 to 5	Nil
	93 Min.	1 R	9.00%	1.75 to 5	0.40 to 0.50
	77 Min.	2	Negligible	1.75 to 5	0.40 to 0.50
	77 to 130 Min.	1 R-2	As Desired	1.75 to 5	As Desired

Width Tolerance +_ 0.127 MM.
Thickness Tolerance + 0.03 mm.
Coil size ID 406 +_ 1.60 MM.
OD 597 mm max.

The ribbon wounds vary from 648 to 686 mm depending upon strap size.
Strap edges are blunted by Beveled process to prevent strap cutting in the fingers or hands while strapping.
Strapping is available in both Ribbon and Mill Wound to 50 kg weight.
Jumbo Coils are also supplied at 220 kg weight
Special requirements are undertaken on request

Metal Seals:

All variety of seals like, Snap-on seals, Push type seals, Nestack seals are available for various applications with Customers Logo/Signature.

Strapping Tools:

All Manual Pneumatic/Power Strapping Machines are available from FROMM, Switzerland
